Minelab Manticore Metal Detector

Minelab Manticore Metal Detector

Regular price $1,299.00 USD
Regular price Sale price $1,299.00 USD
Sale Sold out
Shipping calculated at checkout.

Low stock: 2 left

More Power More Depth More Finds

Discover hidden treasures with the Minelab Manticore Multi-Freq. High Power Waterproof Metal Detector. This versatile device is perfect for general purpose, diving, beach/surf, and gold prospecting. With simultaneous multi-frequency technology, you can quickly and easily detect multiple frequencies at the same time, making it an ideal tool for any metal detecting enthusiast. The Manticore model features a waterproof design, making it perfect for use in all types of weather. It also comes equipped with a discrimination knob, backlight, and volume control, allowing you to easily adjust the settings to suit your specific needs. As a reliable and durable option for anyone looking to uncover valuable finds, this Minelab metal detector is a must-have.


Multi-IQ+ is the newest generation Simultaneous Multi-Frequency engine from Minelab, building on the success of the original Multi-IQ. Multi-IQ+ transmits more power through the coil at a wider range of operating frequencies, to light up more targets in the ground. It has completely revamped signal processing providing enhanced discrimination, greater Target ID resolution, improved target separation, and gives you a greater ability to tune discrimination and audio to suit your detecting conditions.

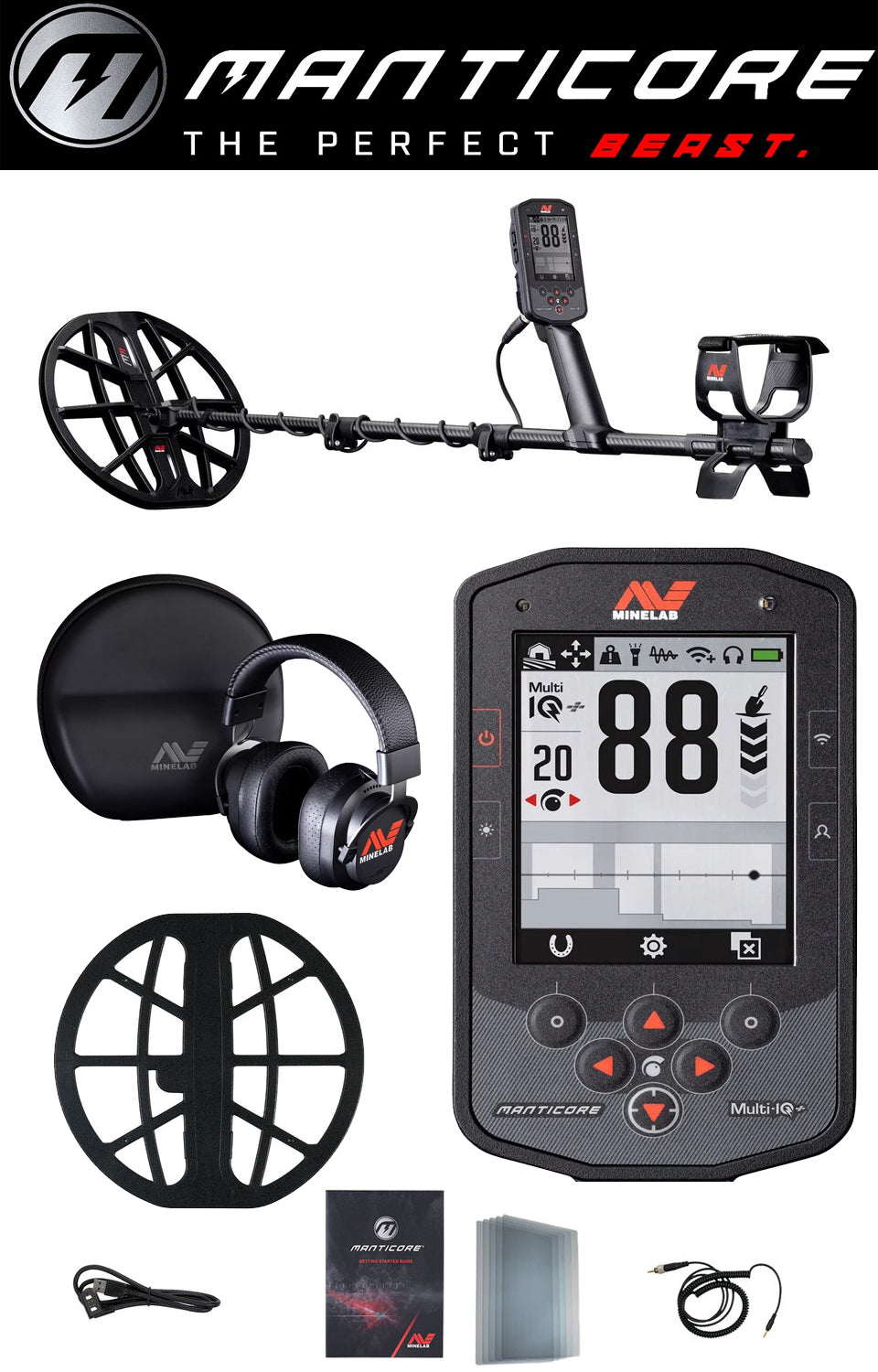

Includes:

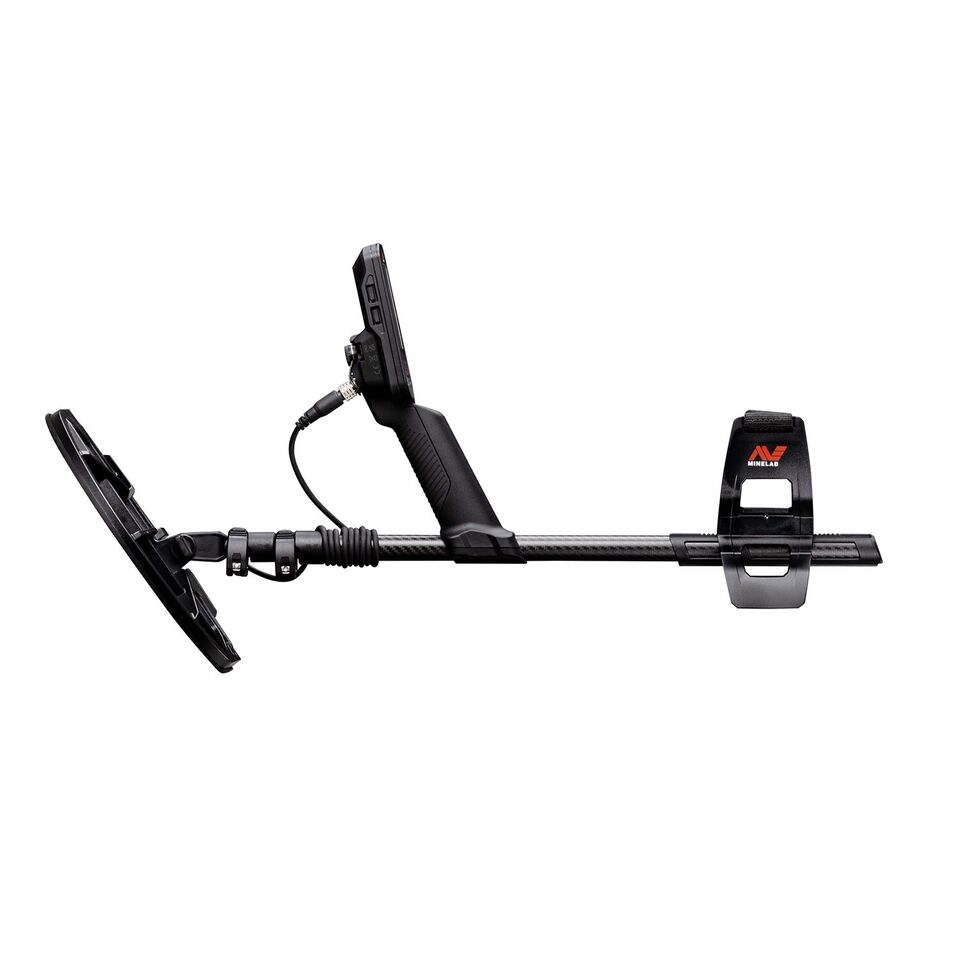

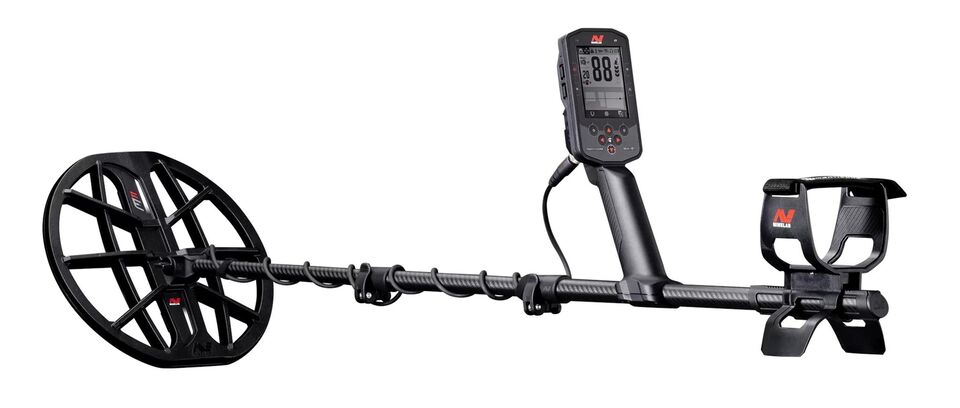

  • Minelab Manticore High Power, Multi-Frequency, Waterproof Metal Detector

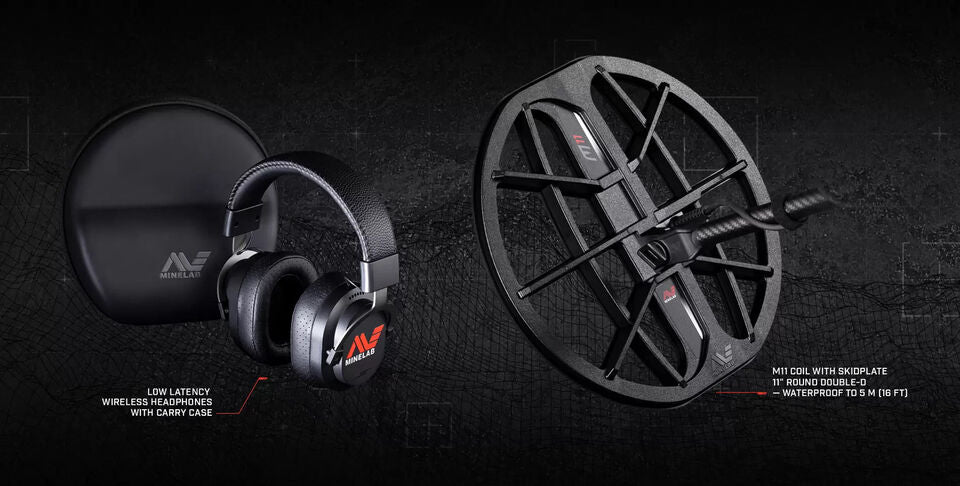

  • Minelab 11" Double-D Smartcoil with Skidplate (Installed)

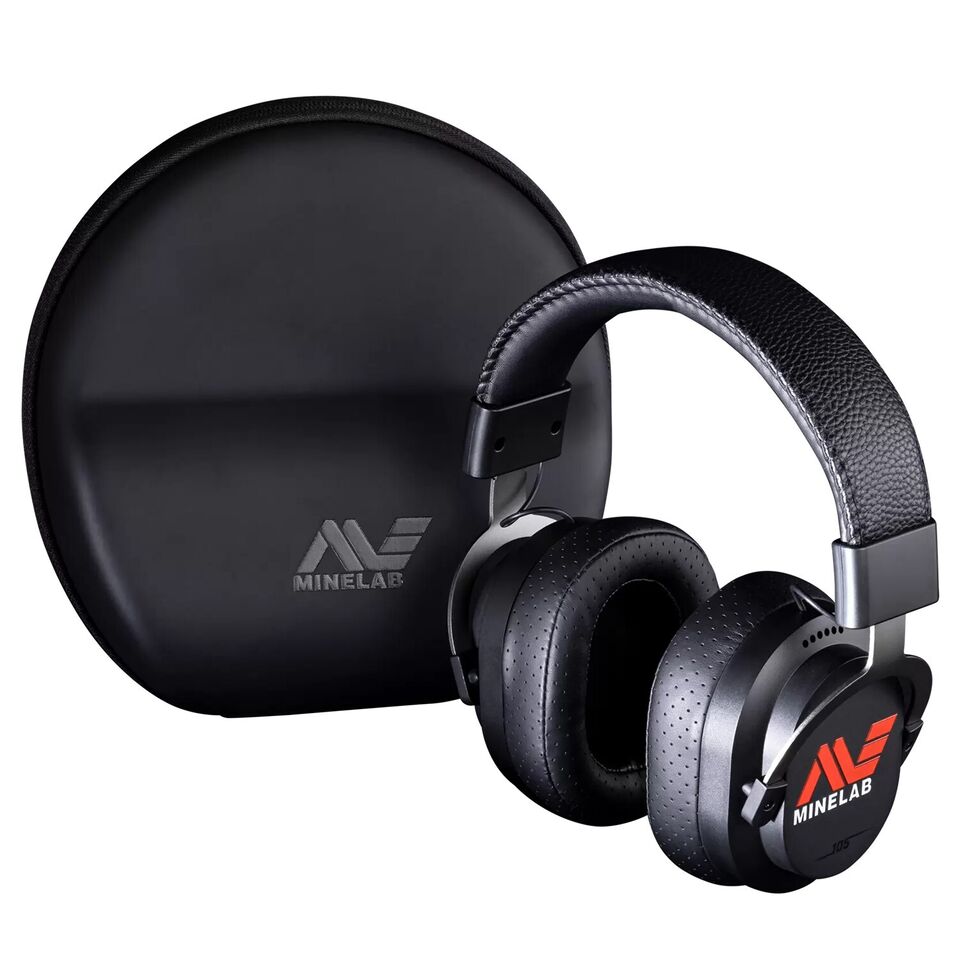

  • Minelab ML-105 Wireless Headphones with Case
  • Quick Start Guide
  • USB Charging Cable
  • Screen Protectors
  • 3 Year Warranty

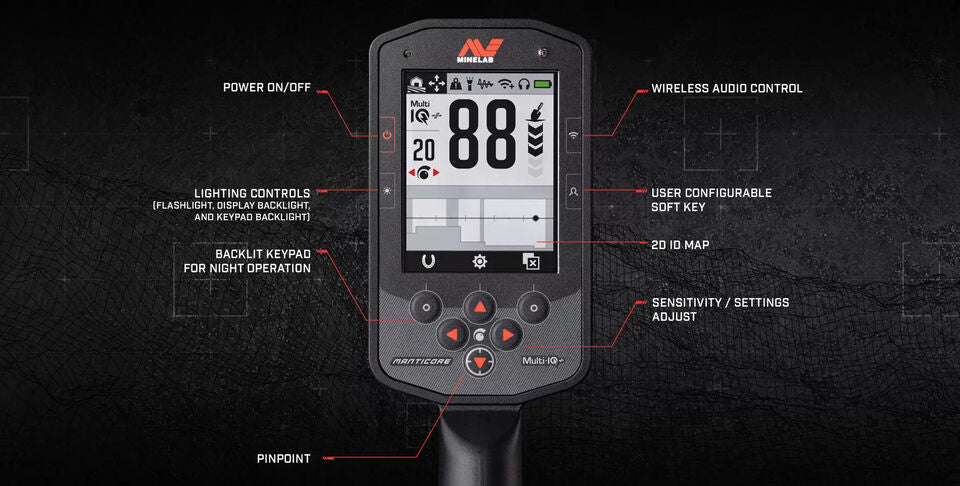

Manticore Tech Specs

Detect Modes (Customisable): All-Terrain (5), Beach (4), Goldfield (1)
Operating Frequencies: Multi-IQ+, 5 kHz, 10 kHz, 15 kHz, 20 kHz, 40 kHz
Noise Cancel: Auto, Continuous Auto, Manual (-9 to +9)
Ground Balance: Auto, Manual, Tracking
Sensitivity: 1 to 35
Target Identification: Conductive: 0-99 with ferrous indication
2D ID Map: Two-Dimensional ID Map System with Target Trace
Target Tones: 1, 2, 5 - Tone | 1, 2, 5 - Region All Tones
Target Volume: 0 to 25
Target Pitch: 1 to 50
Ferrous Volume: 0 to 25
Ferrous Pitch: 1 to 50
Audio Themes: Normal, Enhanced, Depth, Prospecting
Volume Profiles: Simple, Medium, Rich
Threshold Level: 0 to 25
Threshold Pitch: 1 to 50
Recovery Speed: 0 to 8
Ferrous Limits: Upper: 0 to 14 | Lower: 0 to 9
Ferrous Limits Custom: 1 to 4
Shortcuts: Soft Keys: 2 (Action Bar), 1 (User Button)
Depth Indicator: 5 levels

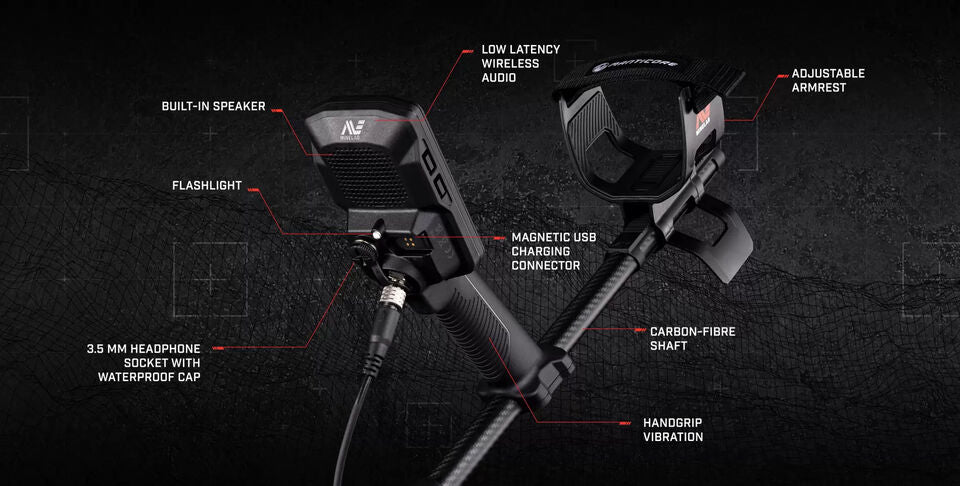

Shaft System: 3-piece highly collapsible carbon-fibre
Extended Length: 1440 mm / 56.7 inch
Collapsed Length: 630 mm / 24.8 inch
Weight: 1.3 kg / 2.9 lb

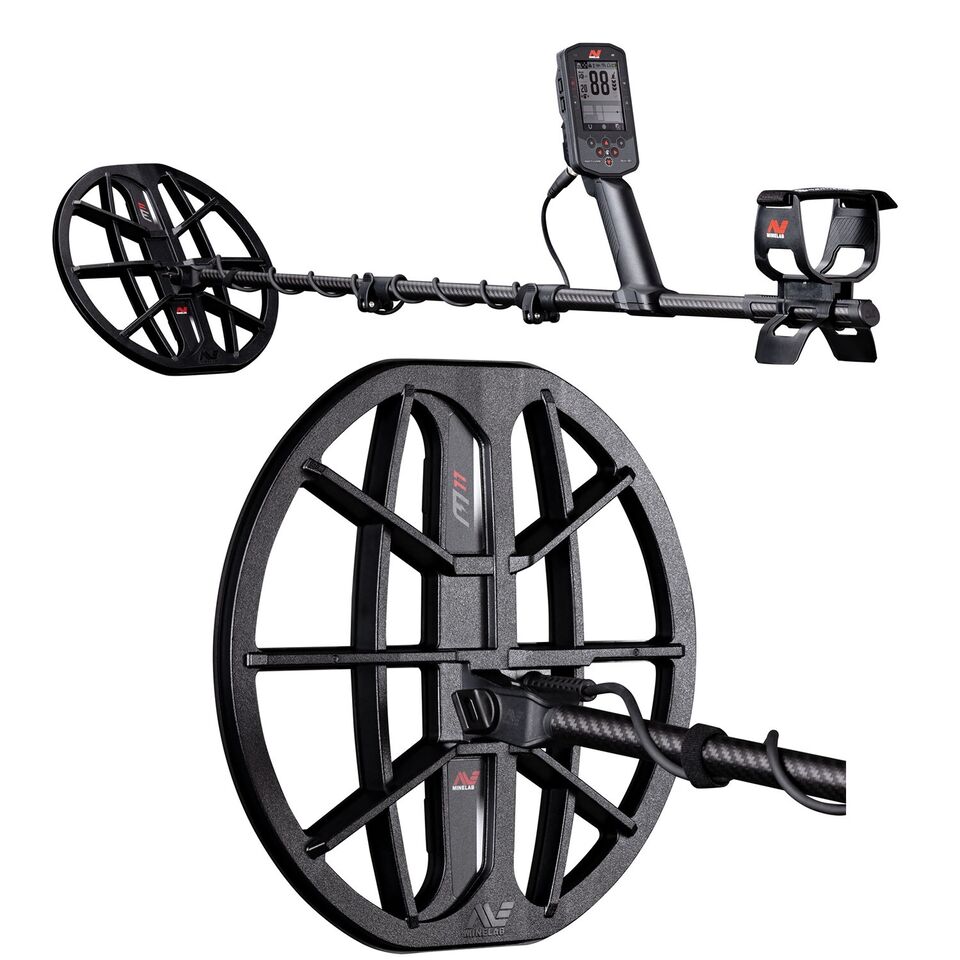

Standard Coil (M11): 11-inch round Double-D coil with skidplate (waterproof to 5 m / 16 ft)
Audio Output: Speaker | 3.5 mm (1/8") headphones | Wireless low latency headphones
Headphones (Included): Minelab ML-105 wireless low latency headphones (non waterproof)

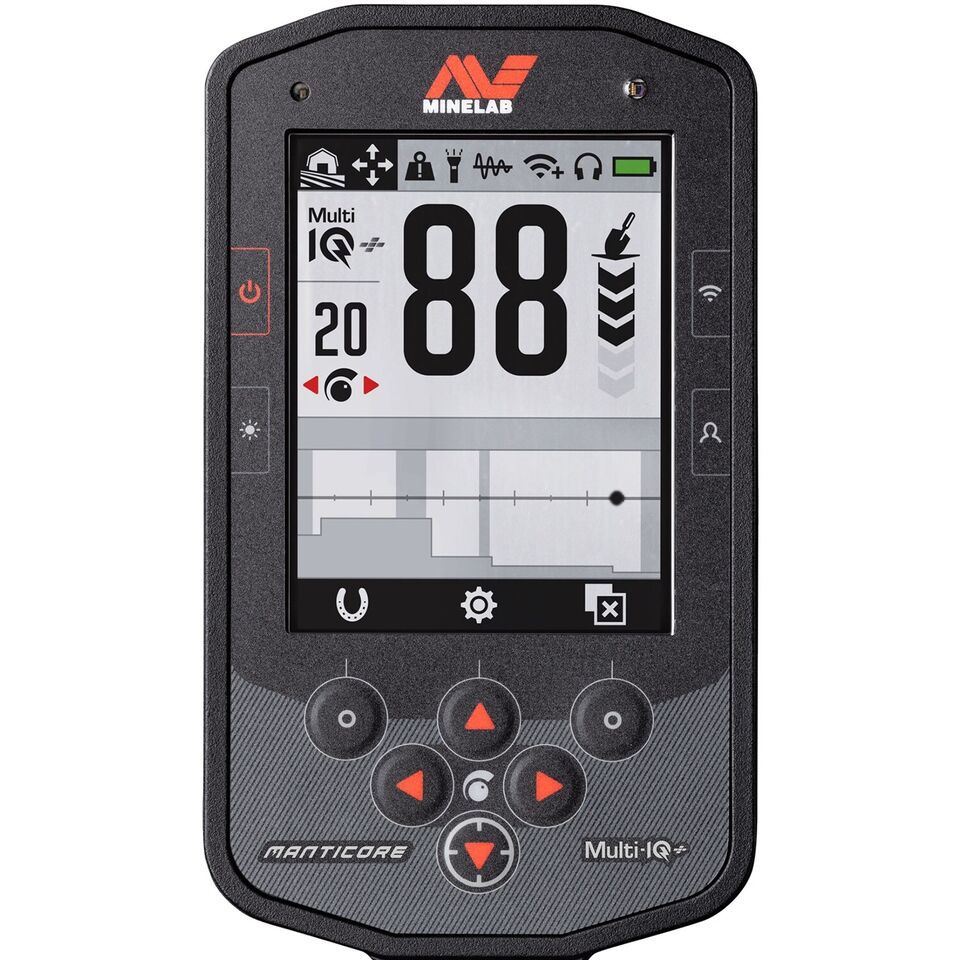

Display: Colour LCD
Display Backlight: Manual (1 to 10), Auto Adjust
Keypad Backlight: On, Off
Flashlight: Low, Medium, High, Off
Handgrip Vibration: On, Off
Battery: Internal rechargeable Lithium-ion battery
Battery Run Time: Approx. 10 hours
Battery Charge Time: Approx. 7 hours
Waterproof to 5 m / 16 ft, IP68
Key Technologies: Multi-IQ+ (High Power Simultaneous Multi-Frequency)
Included Accessories: USB Charging Cable, 5x Screen Protectors, 3.5 mm Headphone Audio Cable, Headphone Case
Software Upgradable: Yes, via USB connection (Windows or Mac OS compatible)
Warranty: 3 Years
